HL-8T, MERCEDES ARTEGO, Ústí nad Orlicí

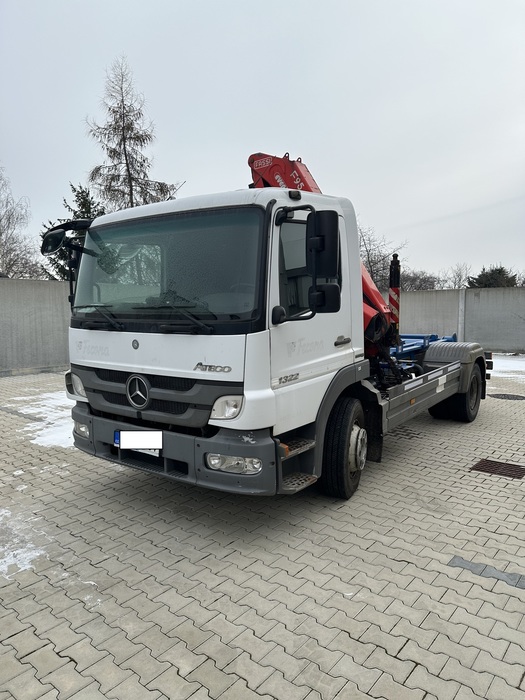

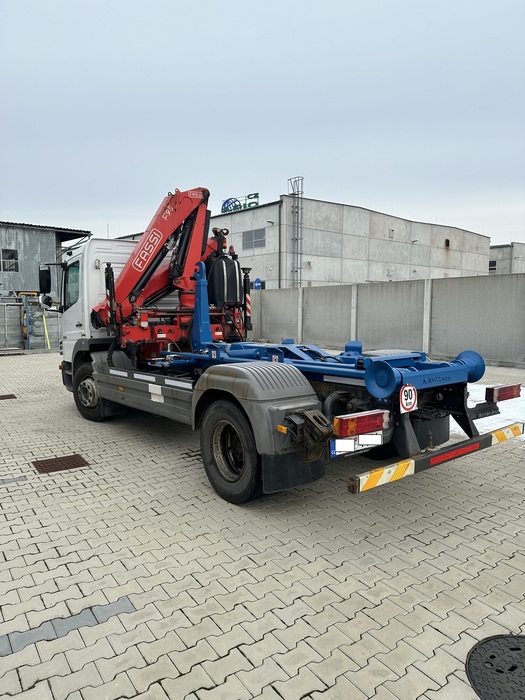

Implementation of a Hooklift up to 8 Tons - 2024, Pardubice Region, MERCEDES ARTEGO
The customer needed a new and reliable 8-ton hooklift for their Mercedes, which was already equipped with a FASSI hydraulic loading crane.
The vehicle was delivered, and we agreed on the price and delivery date on the spot.
Three weeks later, the vehicle was picked up, fully completed.
- Range of nominal container lengths: [mm] 3,400 to 3,800
- Container hitch height: [mm] 1,000
- Outer distance between lower container skids: [mm] 1,060
Technical specifications of the HL-8T mechanism:
-
- Load capacity of the mechanism (lifting and tilting performance): [kg] 8 000
- MAX overall height of the mechanism (initial state): [mm] 1,330
- MAX overall width of the mechanism (with oil tank): [mm] 1,528
- MAX overall length of the mechanism (initial state): [mm] 4,156
-Hook height (from the container contact surface): [mm] 1,000
- Nominal working pressure: [bar] 250
- Volume of the separate oil tank: [l] 40
- Maximum cross slope of terrain during tilting: [°] 5
- Maximum longitudinal slope during loading and unloading: [°] 5
Customer Reference
"At APIO, I appreciate the speed and reliability. I always know that I will receive a quality and complete service."
On behalf of the APIO team, THANK YOU FOR YOUR TRUST!
