HL-5T, MITSUBISHI FUSO, Ústí nad Orlicí
Implementation of a Hooklift up to 5 tons - 2024, Ústní nad Orlicí, Pardubický region
The customer needed to quickly replace two 5-ton carriers and a container.
We agreed on all the necessary details over the phone in advance.
Subsequently, the client delivered the vehicles to us, and after 2 weeks, they were picked up.

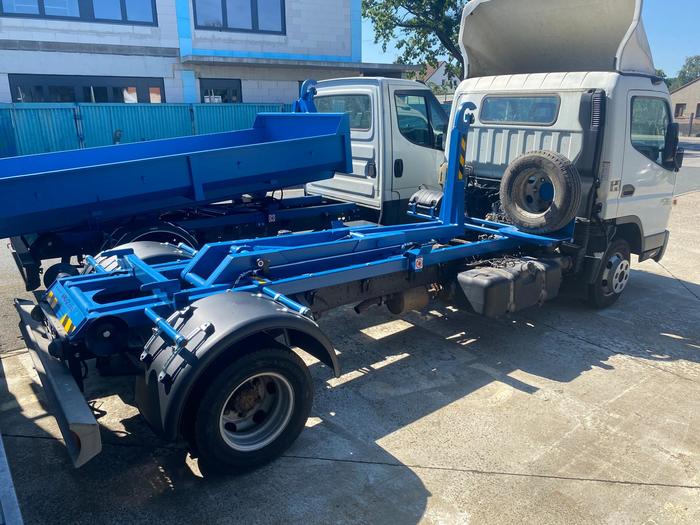

The HL-5T single-arm hooklift mechanism is adapted for handling all interchangeable containers of the AVIA type (according to DIN 30722.3):
- Range of nominal container lengths: [mm] 3 400 až 3 800- Container hitch height: [mm] 1 000
- Outer distance between lower container skids: [mm] 1 060
Technical specifications of the HL-5T:
- Load capacity (lifting and tilting performance): [kg] 5 000
- MAX overall height of the mechanism (initial state): [mm] 1 300
- MAX overall width of the mechanism (with oil tank): [mm] 1 548
- MAX overall length of the mechanism (initial state): [mm] 4 000
- Hook height (from the container contact surface): [mm] 1 000
- Nominal working pressure: [bar] 250
- Volume of the separate oil tank: [l] 25
- MAX cross slope of terrain during tilting: [°] 5
- MAX longitudinal slope during loading and unloading: [°] 5
Customer Reference
"We appreciated the quick communication and execution at APIO."
On behalf of APIO, THANK YOU FOR YOUR TRUST!
