HL-5T, MERCEDES SPRINTER, Prague

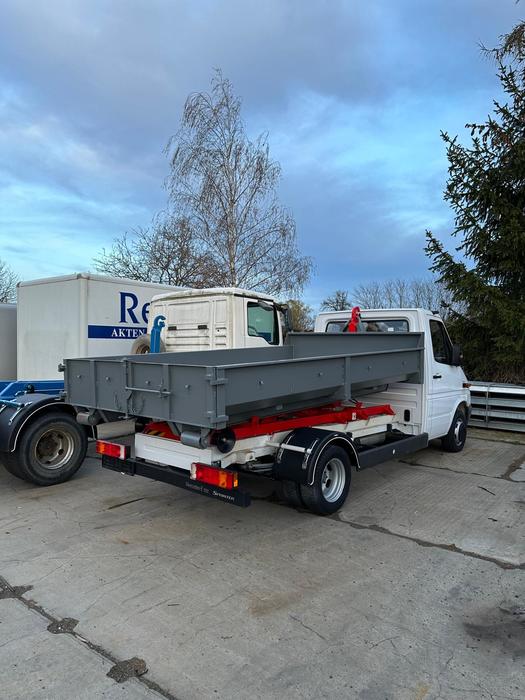

Implementation of a Hooklift up to 5 Tons - 2024, Prague
The customer from Prague needed to completely replace the hooklift and the container for their utility vehicle.
After the vehicle was delivered, we agreed on the price and delivery date.
Three weeks later, the vehicle was picked up, fully completed.
The HL-5T single-arm hooklift mechanism is adapted for handling all interchangeable containers of the AVIA type (according to DIN 30722.3):
- Range of nominal container lengths: [mm] 3 400 až 3 800- Container hitch height: [mm] 1 000
- Outer distance between lower container skids: [mm] 1 060
Technical specifications of the HL-5T:
- Load capacity (lifting and tilting performance): [kg] 5 000
- MAX overall height of the mechanism (initial state): [mm] 1 300
- MAX overall width of the mechanism (with oil tank): [mm] 1 548
- MAX overall length of the mechanism (initial state): [mm] 4 000
- Hook height (from the container contact surface): [mm] 1 000
- Nominal working pressure: [bar] 250
- Volume of the separate oil tank: [l] 25
- MAX cross slope of terrain during tilting: [°] 5
- MAX longitudinal slope during loading and unloading: [°] 5
Customer Reference
"I appreciated the quick communication and fair price."
On behalf of the APIO team, THANK YOU FOR YOUR TRUST!
