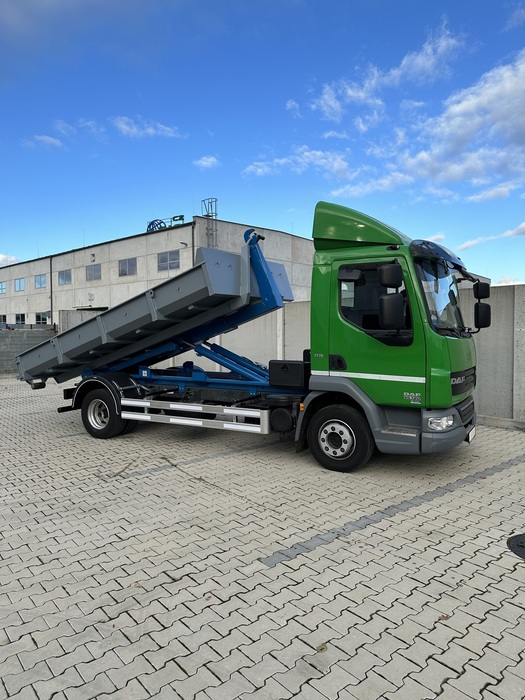

HL-8T, DAF, Prague

The HL-8T single-arm hooklift mechanism is adapted for handling all interchangeable containers of the AVIA type (according to DIN 30722.3):
-

- Range of nominal container lengths: [mm] 3,400 to 3,800

- Container hitch height: [mm] 1,000

- Outer distance between lower container skids: [mm] 1,060

Technical specifications of the HL-8T mechanism:
- Load capacity of the mechanism (lifting and tilting performance): [kg] 8 000
- MAX overall height of the mechanism (initial state): [mm] 1,330
- MAX overall width of the mechanism (with oil tank): [mm] 1,528
- Max. overall length of the mechanism (initial state): [mm] 4,156
-Hook height (from the container contact surface): [mm] 1,000

- Nominal working pressure: [bar] 250

- Volume of the separate oil tank: [l] 40

- Maximum cross slope of terrain during tilting: [°] 5

- Maximum longitudinal slope during loading and unloading: [°] 5
